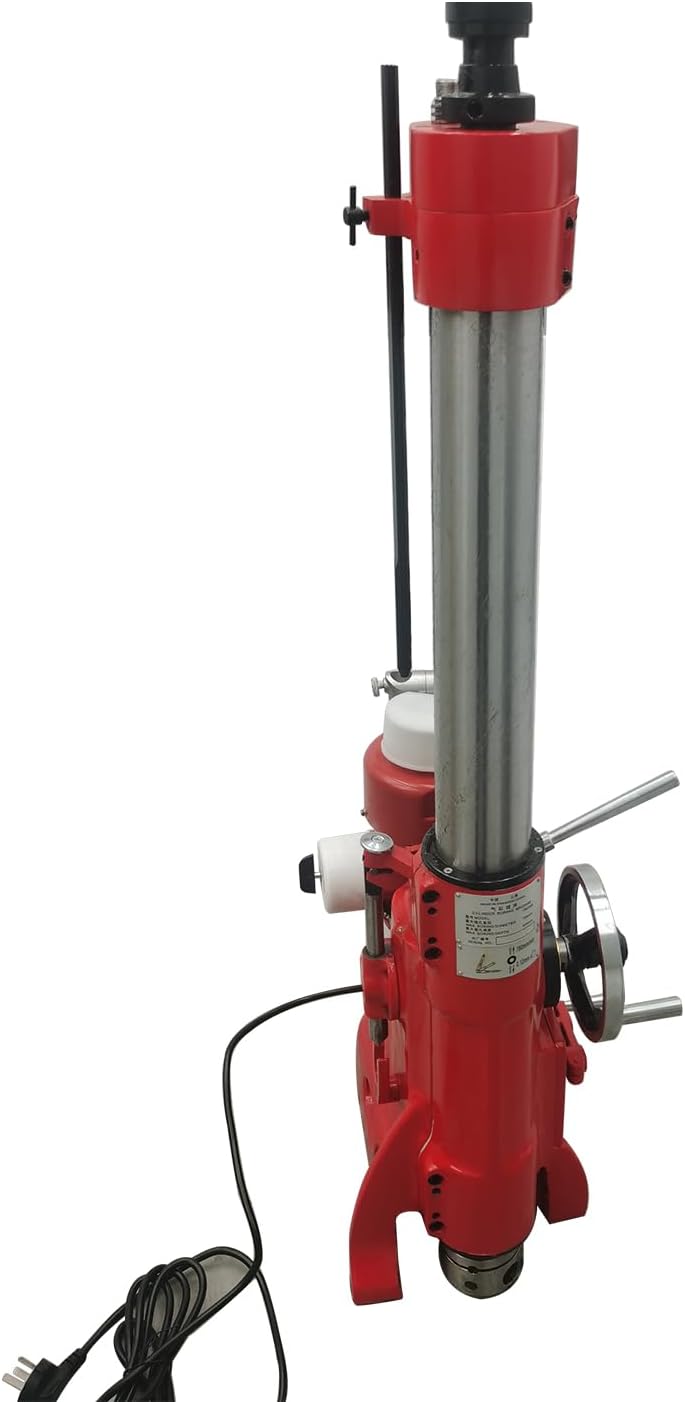

T8016A 220V Single-Phase Cylinder Boring and Honing Machine, 0.25kW 1400RPM Motor, 3.0-6.5in Boring Range 400mm Depth for Auto and Tractor Engine Rebuilding
T8016A 220V Single-Phase Cylinder Boring and Honing Machine, 0.25kW 1400RPM Motor, 3.0-6.5in Boring Range 400mm Depth for Auto and Tractor Engine Rebuilding
▼Attention:1. Check that the upper plane of the cylinder block is clean and straight.2. If the upper plane is not straight, level it to maintain good contact with the bottom of the boring machine and verticality of the cylinder wall and block.3. Generally, cylinders should be re-honed to a 0.05 mm allowance after machining.

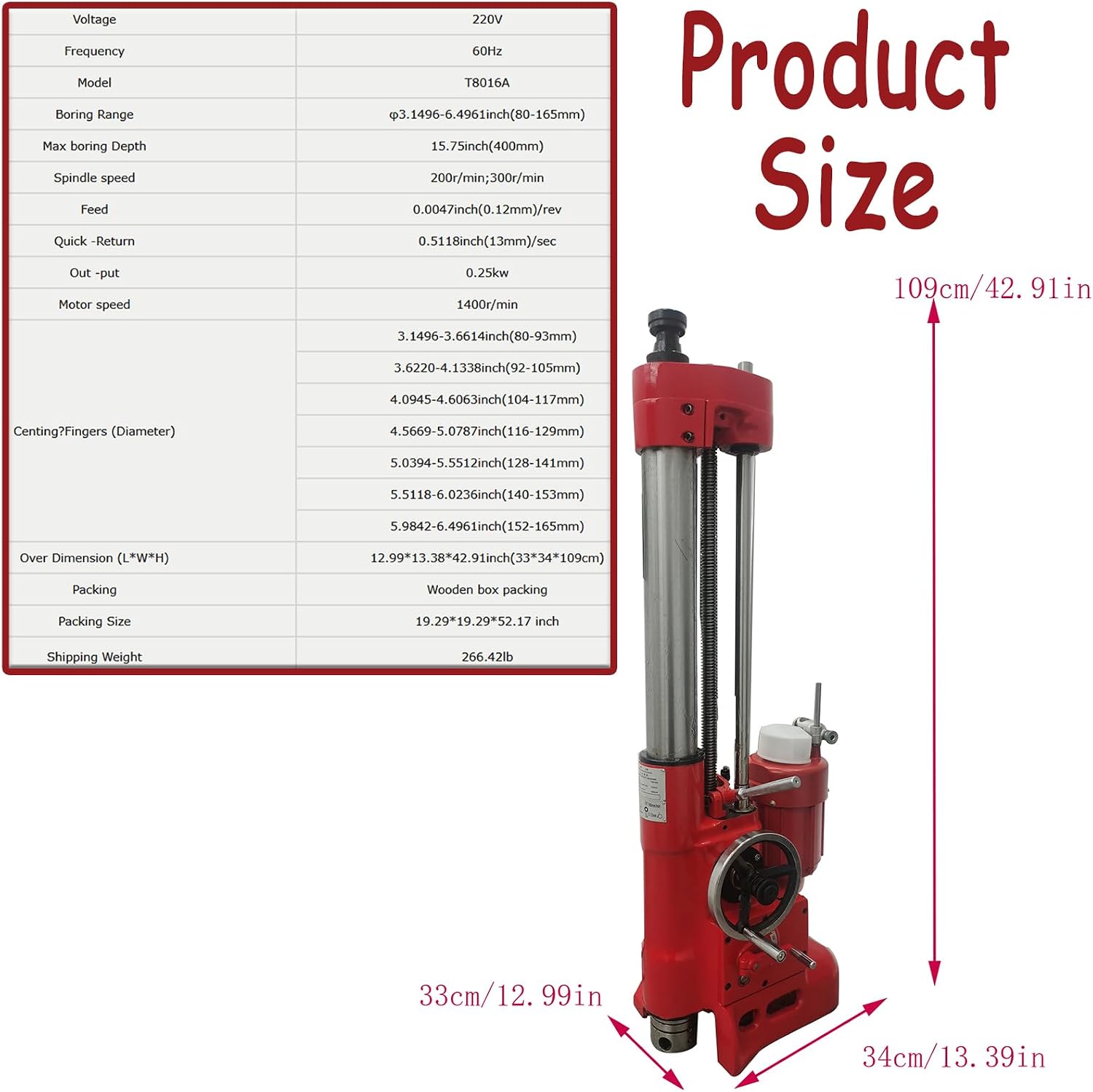

▼Specification:Voltage: 220VFrequency: 60HzModel: T8016ABoring Range: Φ3.1496-6.4961inch(80-165mm)Max boring Depth: 15.75inch(400mm)Spindle Speed: 200r/min, 300r/minFeed: 0.0047inch(0.12mm)/revQuick-Return: 0.5118inch(13mm)/secOut Put: 250WMotor Speed: 1400r/minCentering Fingers (Diameter):◆3.1496-3.6614inch(80-93mm)◆3.1496-3.6614inch(80-93mm)◆4.0945-4.6063inch(104-117mm)◆4.5669-5.0787inch(116-129mm)◆5.0394-5.5512inch(128-141mm)◆5.5118-6.0236inch(140-153mm)◆5.9842-6.4961inch(152-165mm)
Overall Dimension (L*W*H): 12.99*13.38*42.91inch(33*34*109cm)Packing: Wooden box packingPacking Size: 19.29*19.29*52.17 inchShipping Weight: 266.42lbs
▼Item Number: 022578Cylinder boring machine T8016A (220V)
Additional details
- Color : Red
- Material Type : Metal
Features & Specs
- Maximum Chuck Size : 0.5 Inches
- Maximum Power : 250 Watts
- Maximum Rotational Speed : 300 RPM
- Power Source : Corded Electric
- Voltage : 220 Volts (AC)
Item details
- ASIN : B0F13HKNPS
- Brand Name : Banfluxion
- Manufacturer : Banfluxion
- Manufacturer Part Number : CB-022578
- UPC : 198462279598
- Unit Count : 1.0 Count
Measurements
- Item Dimensions L x W x H : 12.99'L x 13.38'W x 42.91'H
