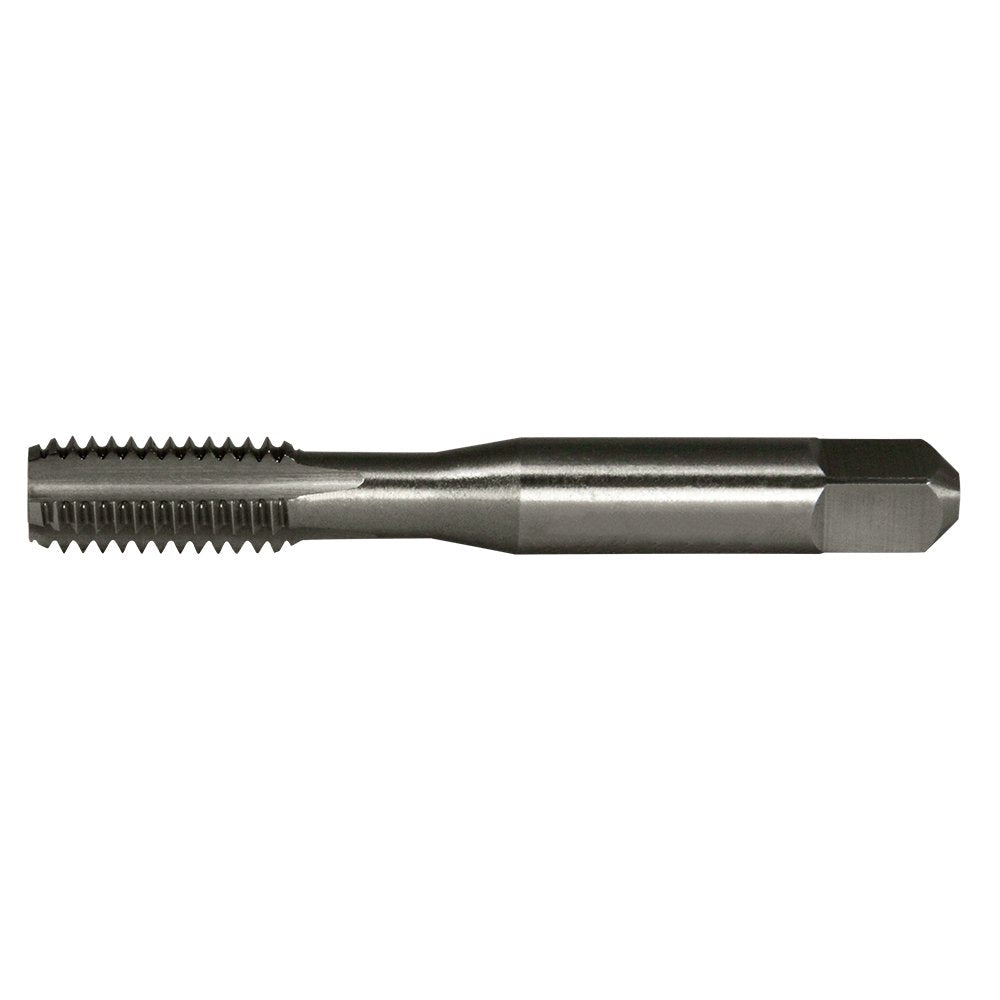

Greenfield Threading 308440 GT/VTD 1-1/8-7NC HTGP H4 4FL GP Bottom Hand Tap

Flute Type: Straight. Hand of Cut: Right. Material: HSS. Number of Flutes: 4, Shank Configuration: Straight with Square. Surface Condition: Bright, Tap Blank Construction: USCTI Table 302A, Tap Chamfer: Bottoming, Tap Construction: Standard, Tap Ground Threads: Yes, Tap Interrupted Thread: No, Tap Limit: H4, Tap Spiral Point: No, Tap Style: Straight Flute Hand Tap, Tap Truncated Threads: No, Tap Type: Hand Tap. Tool Size: 1-1/8 - 7 UNC. Diameter: 1.1250-Inch. Overall Length: 5.4375-Inch, Overall Length (Metric): 138.11mm, Shank Size: 0.8960-Inch, Shank Size (Metric): 22.76mm, Shank Square Length: 0.8750-Inch, Shank Square Length (Metric): 22.22mm, Shank Square Size: 0.6720-Inch, Shank Square Size (Metric): 17.07mm. Depth of Cut: 2xD. Material Application:- K: Cast Iron, M: Stainless Steel, N: Non-ferrous Metal, P: Steel. Operation Type: Blind Hole.

Features & Specs

• Number of Flutes : 4
• Tool Flute Type : Straight

Item details

• ASIN : B007W56CYY
• Brand Name : Vermont Tap & Die
• Included Components : Taps-GP Hand
• Item Weight : 1 Pounds
• Manufacturer : Greenfield Industries
• Model : 308440
• Part Number : 308440
• UPC : 662355145968
• Unit Count : 1.0 Count

Materials & Care

• Finish Types : Uncoated
• Material Type : High Speed Steel (HSS)
• Shank Type : Square

Measurements

• Item Dimensions : 5.6 x 1.2 x 1.2 inches
