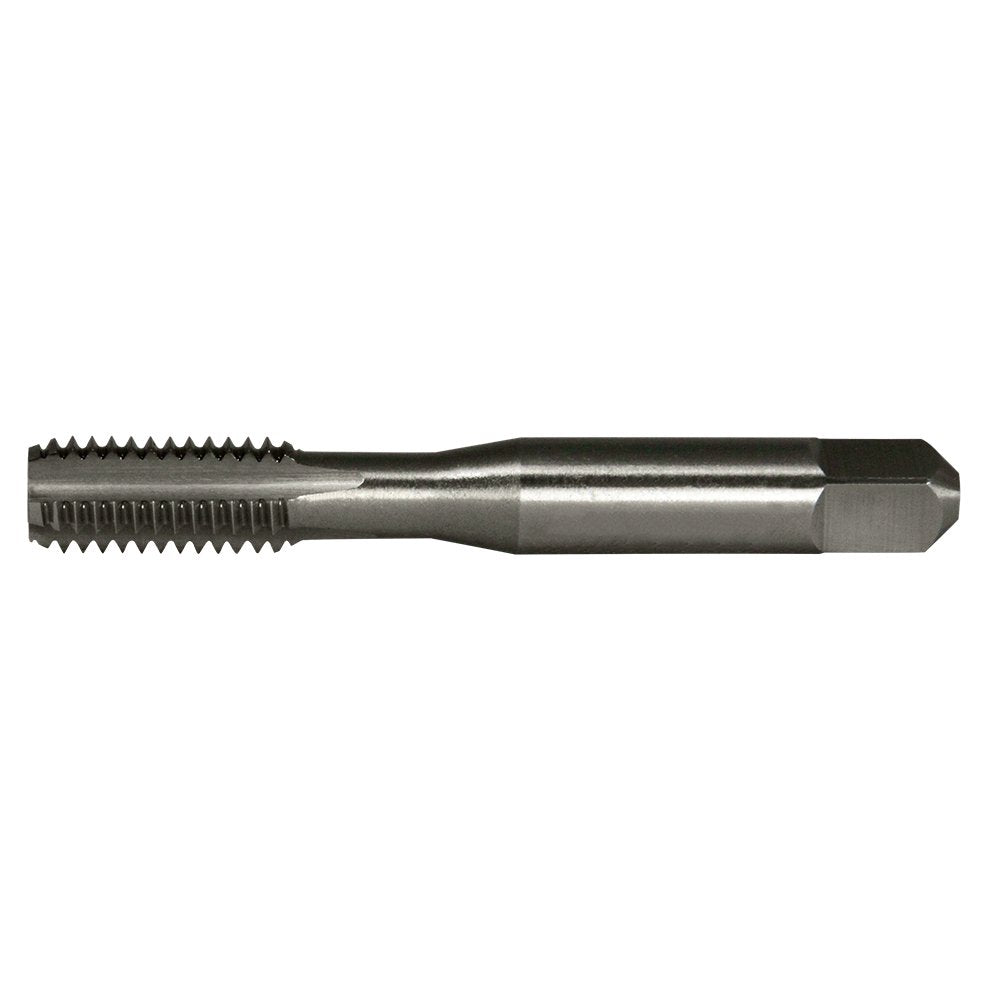

Greenfield Threading 308713 GT/VTD 1-3/8-12NF HTGP H4 6FL GP Bottom Hand Tap

Flute Type: Straight. Hand of Cut: Right. Material: HSS. Number of Flutes: 6, Shank Configuration: Straight with Square. Surface Condition: Bright, Tap Blank Construction: USCTI Table 302A, Tap Chamfer: Bottoming, Tap Construction: Standard, Tap Ground Threads: Yes, Tap Interrupted Thread: No, Tap Limit: H4, Tap Spiral Point: No, Tap Style: Straight Flute Hand Tap, Tap Truncated Threads: No, Tap Type: Hand Tap. Tool Size: 1-3/8 - 12 UNF. Diameter: 1.3750-Inch. Overall Length: 6.0625-Inch, Overall Length (Metric): 153.99mm, Shank Size: 1.1080-Inch, Shank Size (Metric): 28.14mm, Shank Square Length: 1.0625-Inch, Shank Square Length (Metric): 26.99mm, Shank Square Size: 0.8310-Inch, Shank Square Size (Metric): 21.11mm. Depth of Cut: 2xD. Material Application:- K: Cast Iron, M: Stainless Steel, N: Non-ferrous Metal, P: Steel. Operation Type: Blind Hole.

Features & Specs

• Number of Flutes : 6
• Tool Flute Type : Straight

Item details

• ASIN : B007W56LJK
• Brand Name : Vermont Tap & Die
• Included Components : Taps-GP Hand
• Manufacturer : Greenfield Industries
• Model : 308713
• Part Number : 308713
• UPC : 662355146422
• Unit Count : 1.0 Count

Materials & Care

• Finish Types : Uncoated
• Material Type : High Speed Steel (HSS)
• Shank Type : Square

Measurements

• Item Dimensions : 6.2 x 1.9 x 1.9 inches
