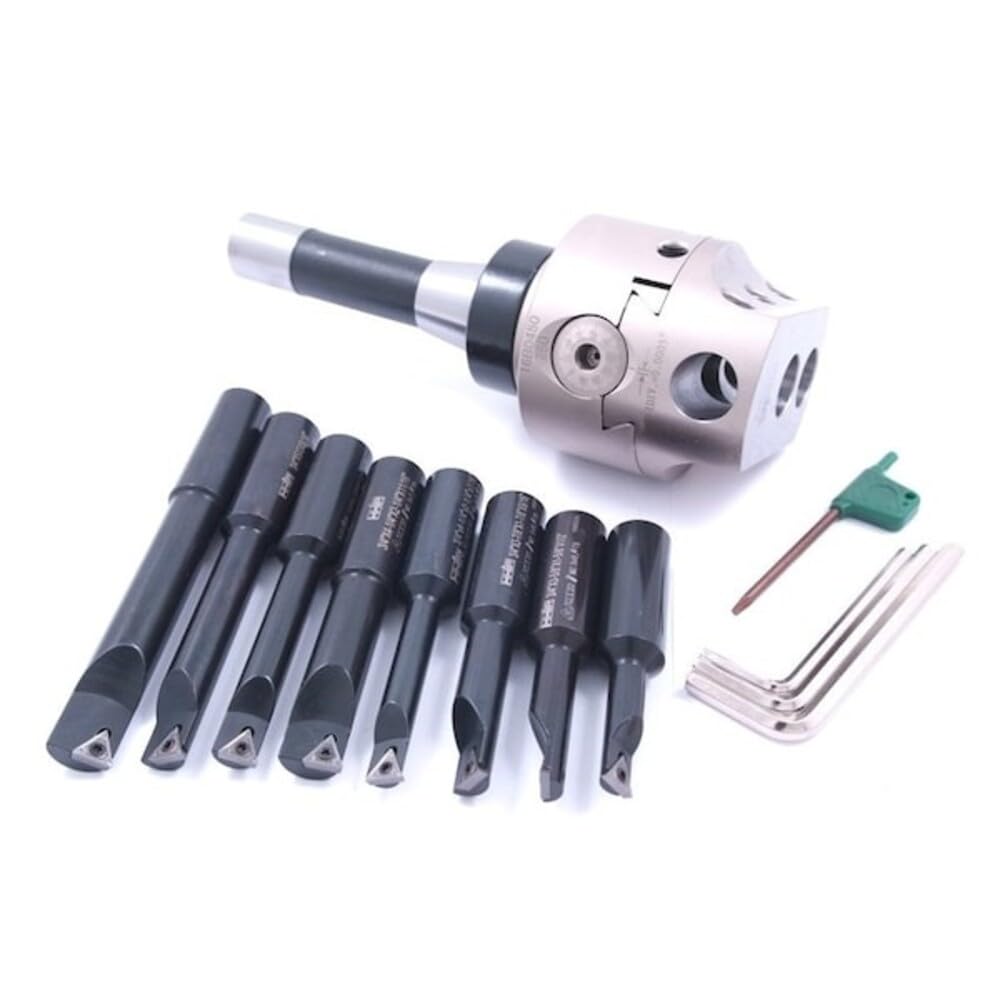

HHIP 1001-0205 Indexable Tool Set with 3 Boring Head, R8 Shank and 8 Boring Bars

HHIP Indexable Tool Set with 3' Boring Head, R8 Shank and 8 Boring Bars. Boring head features a 1-1/2'-18 threaded back so you can change shanks as needed. A micrometer lead screw provides 0. 001' direct reading accuracy and makes adjusting easy. Boring head offset is 1'. Minimum boring diameter is 0. 394'. Maximum boring diameter is 7. 874'. Maximum boring depth is 3. 150'. The cross hole is 3/4'. R8 shank has a drawbar end thread of 7/16'-20. The included indexable boring bars come with TCMT 21. 5 C6 carbide inserts for steel and alloy. The set also comes with torx & l-shape hex wrenches and a fitted carrying case. 1 DIV = 0. 001 which means when turning the dial by 1 division/graduation, on the 0-100 dial, the boring head's travel is 0. 0005' in radius movement, 0. 001' in diameter movement.

Features & Specs

• Number of Flutes : 2
• Point Style : Center Point
• Tool Flute Type : Straight

Item details

• ASIN : B07HHKH451
• Brand Name : HHIP
• Global Trade Identification Number : 00769053097268
• Included Components : Indexable Tool Set
• Item Type Name : 3PC INDEX BORING TOOL SET(3 IN HEAD & R8 & 3/4IN 8PC BARS)
• Manufacturer : HHIP
• Model : 1001-0205
• Number of Pieces : 12
• Part Number : 1001-0205
• Set Name : HHIP 1001-0205 Indexable Tool Set
• UPC : 769053097268
• Unit Count : 1.0 Count

Materials & Care

• Finish Types : Brushed
• Material Type : Blend
• Shank Type : Straight
• Surface Recommendation : Metal

Measurements

• Cutting Diameter : 7.87 Inches
• Item Dimensions : 12 x 9 x 5 inches
• Minimum Bore Diameter : 0.75 Inches
