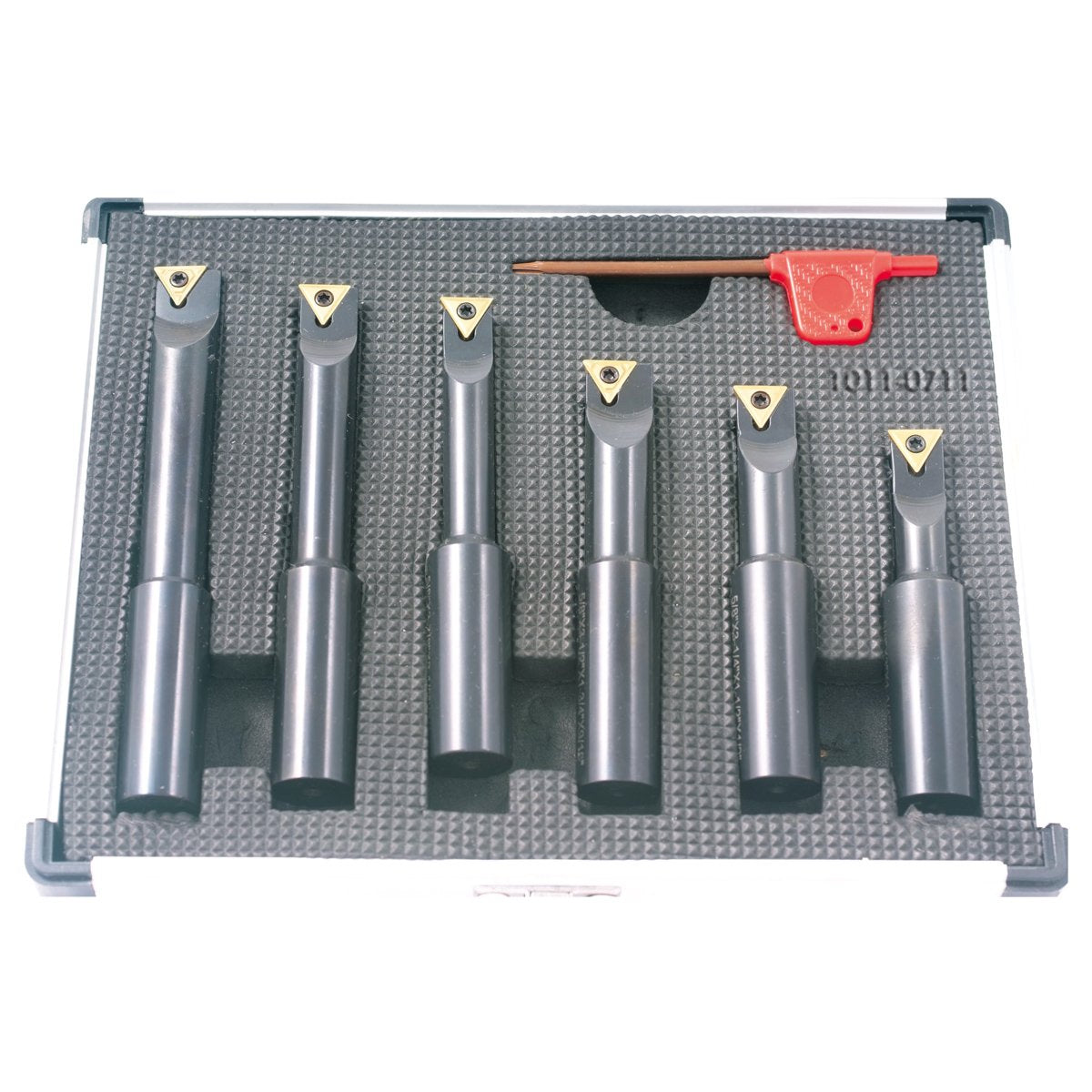

HHIP 1001-0711 Pro Series 6 Piece 5/8' Round Shank Indexable Boring Bar Set

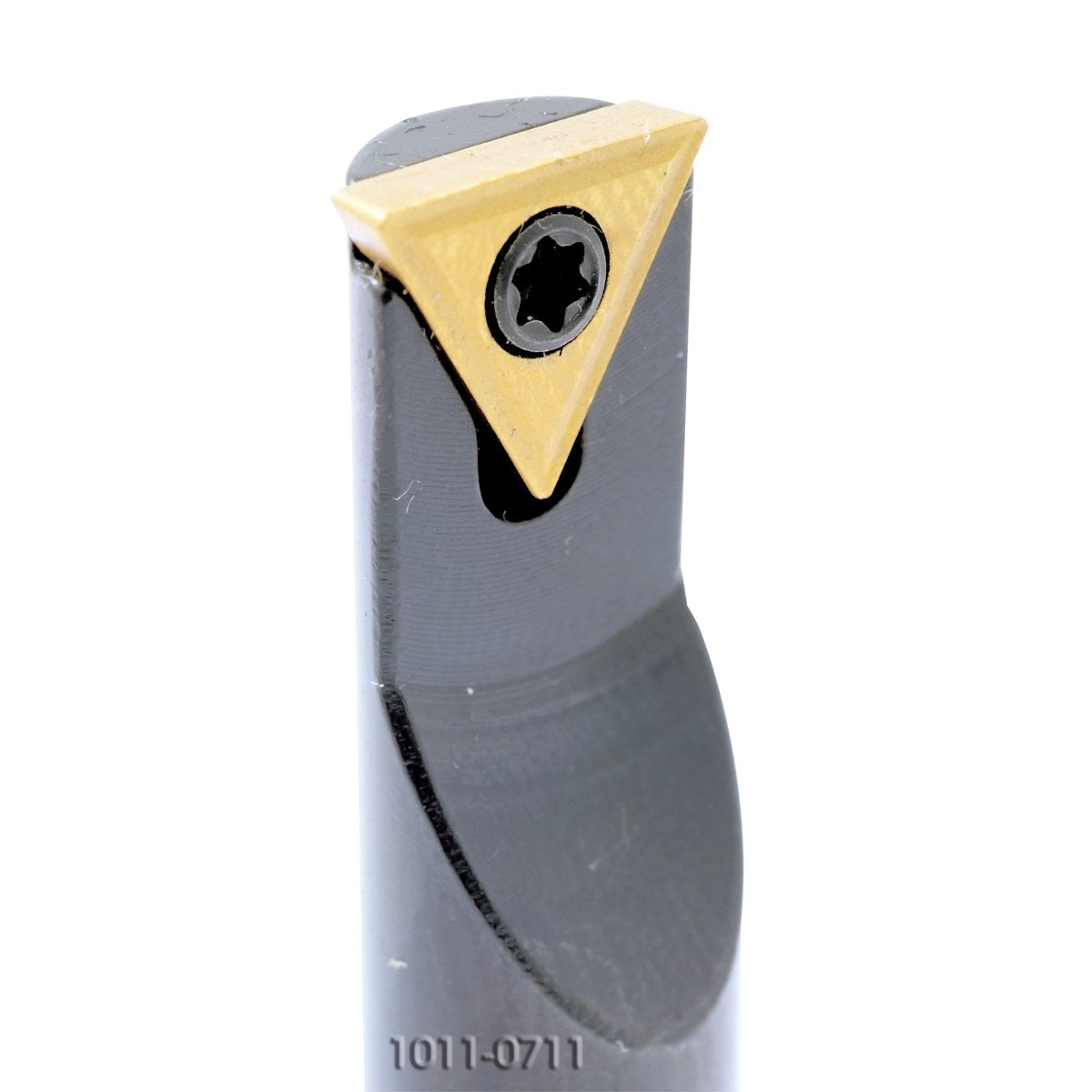

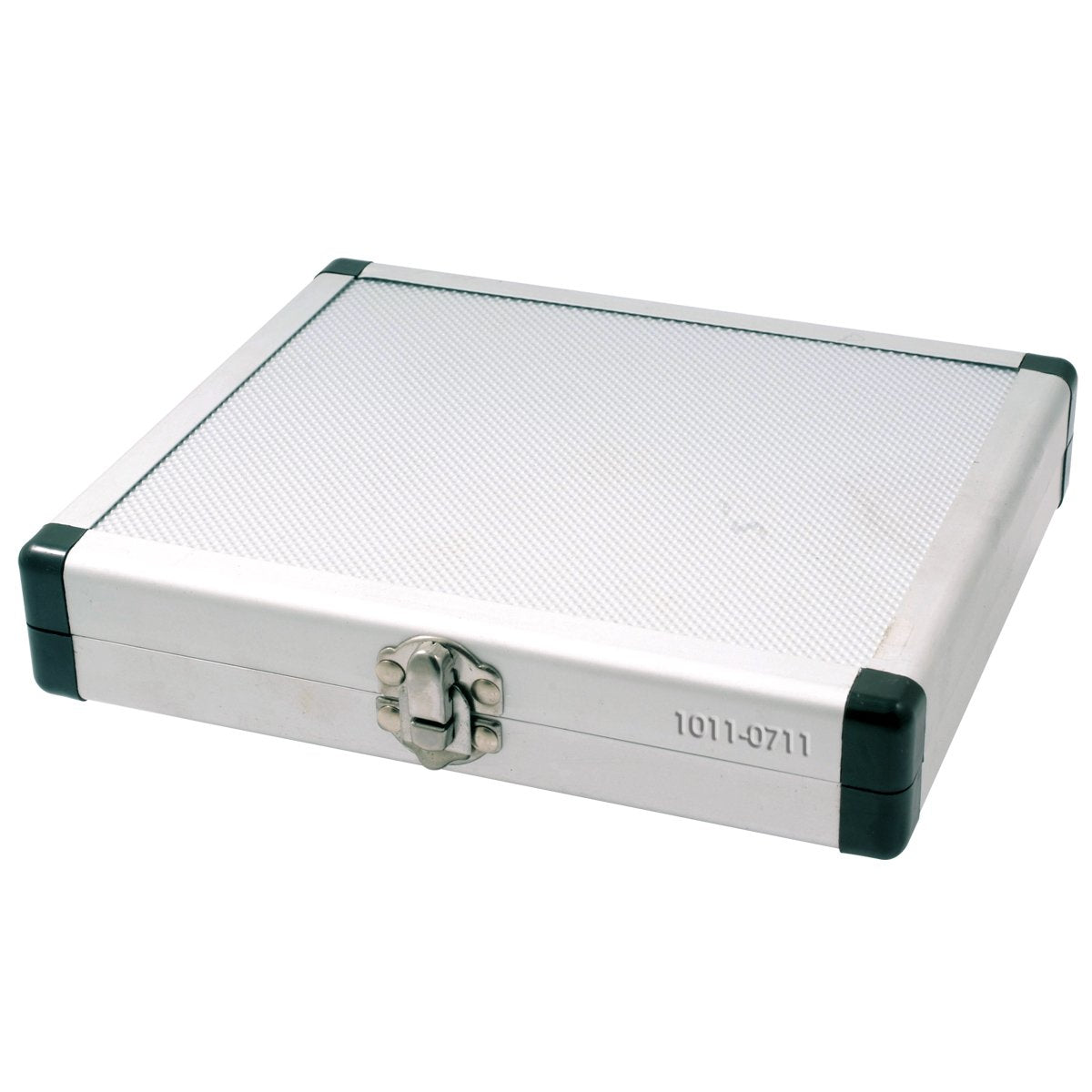

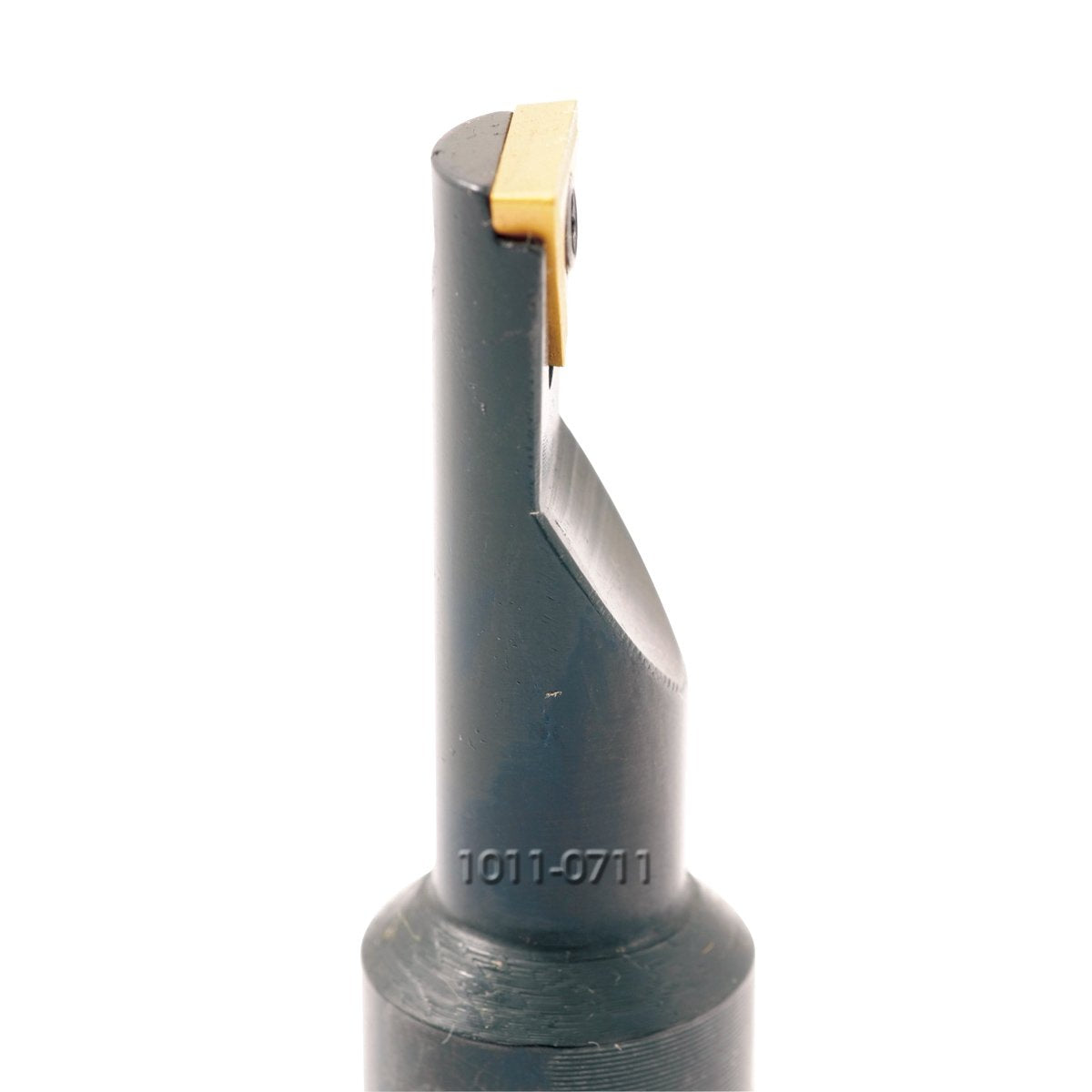

HHIP 6 Piece 5/8' round shank index able boring bar set is Negative 3° lead angle. Positive rake 90° lead with a 7° relief. 5/8' shank. Screw down style. Includes Tin coated TCMT21-5 inserts that fit all bars. Bar 1 has 7/16' minimum bore with 1-1/4' bore depth and a 3' overall length. Bar 2 has 7/16' minimum bore with a 2-1/8' bore depth and a 3-7/8' overall length. Bar 3 has 1/2' minimum bore with a 1-1/2' bore depth and a 3-1/4' overall length. Bar 4 has 1/2' minimum bore with 2-1/2' bore depth and a 4-1/4' overall length. Bar 5 has 9/16' minimum bore with a 1-3/4' bore depth and a 3-1/2' overall length. Bar 6 has 9/16' minimum bore with 2-7/8' bore depth and a 4-5/8' overall length. Includes a T-8 torx wrench. Replacement screw is an M2.5. Includes fitted case.

Technical Details

• ASIN : ‎B01I5PFDGC
• Date First Available : ‎July 8, 2016
• Item Weight : ‎2 pounds
• Item model number : ‎1001-0711
• Manufacturer : ‎HHIP
• Product Dimensions : ‎10 x 6 x 8 inches
